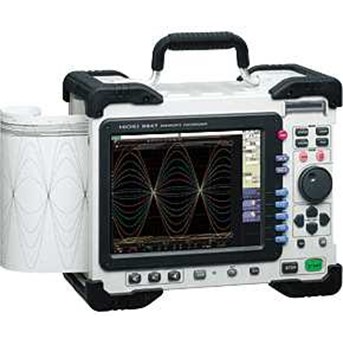

HIOKI 8847 MEMORY HiCORDER

The Ideal Recorder for Field Use Easy Portability and Sturdy Construction : - High-speed sampling up to 20MS/s with fully isolated inputs - 16 analog + 16 logic channels to 64 logic + 10 analog channels - Large, tough handle makes carrying a snap - Soil-resistant construction is strong against adverse working environments - Big buttons are coated to withstand industrial oil and residue - Drop-in paper loading and one-touch setup, along with high 50 mm/s printing speed - Built-in LAN and USB interfaces Basic specifications (Accuracy guaranteed for 1 year) : Number of input Units : Max. 8 units (with 4 logic input terminals for 16 channels built in) [8 analog input modules] to [5 analog input modules + 3 logic input modules] Number of channels : [8 analog input modules]: 16 analog channels + 16 logic channels (standard) [5 analog input modules + 3 logic input modules]: 10 analog channels + 64 logic channels (standard 16 channels + 48 channels in logic input modules) Measurement ranges (20 div full-scale) : 5mV to 20V/div, 12ranges, resolution : 1/100 of range (using the 8966) 5mV to 20V/div, 12ranges, resolution : 1/1600 of range (using the 8968) Max. allowable input : 400 V DC (using the 8966/8968) Frequency characteristics : DC to 5 MHz (-3dB, using the 8966), DC to 100 kHz (-3dB, using the 8968) Time axis (MEMORY) : 5¼s to 5min/div, 26ranges,at 100 points/div resolution, three steps of time-axis magnification from 2× to 10×, and 13 steps of time-axis compression from 1/2× to 1/20,000×. Measurement functions : MEMORY (high-speed recording) RECORDER (real-time recording) X-Y RECORDER (X-Y real-time recording) Memory capacity : 12-bits × 32M-Words/ch (using 2 Analog channels) to 4M-Words/ch (using 16 Analog channels) Data storage media : CF Card slot × 1: up to 1GB, Hard disk drive (option, 80GB) Printing : 216mm (8.50in) × 30m (98.43ft), thermal paper roll, Recording speed : Max. 50mm (1.97in)/sec Display : 10.4 inch TFT color LCD (SVGA, 800×600 dots) Displayable languages : English, Japanese, Korean, Chinese Note: Chinese (available end of 2009) External interfaces : [LAN]:100BASE-TX; Functions: DHCP, DNS supported, FTP server, HTTP server [USB]: USB2.0 compliant, series A receptacle 1 port, series B receptacle 1 port (file transfer to PC, remort control from PC) Power requirements : 100 to 240V AC, 50/60Hz (130VA max., when using printer: 220VA max.) 10 to 28V DC (when using the optional factory-installed DC POWER UNIT 9784) Dimensions, mass : 351mm (13.82in) W × 261mm (10.28in) H × 140mm (5.51in) D, 7.6kg (268.1oz) (main unit only) Supplied accessories : Instruction Manual × 1, Measurement Guide × 1, Application Disk (Wave Viewer Wv, Communication Commands table) × 1, Power cord × 1, Input cord label × 1, USB cable × 1, Printer paper × 1, Roll paper attachment × 2
